方园FY-HVS系列高频叠层振动细筛



单价 面议对比
询价 暂无
浏览 1479
发货 安徽淮北市付款后3天内
品牌 安徽方园
过期 长期有效
更新 2020-12-18 13:38

联系方式
加关注0

安徽方园塑胶有限责任公司

企业会员第4年
资料未认证
保证金未缴纳
详细说明

方园FY-HVS系列高频叠层振动细筛是由方园公司引进国外先进技术研制出的湿式细粒物料筛分设备,其特征如下:


 筛机主体采用铆钉铆接,保证了设备长期运行的可靠性和稳定性,减少了维护次数和劳动量。

 筛机表面整体采用聚脲喷涂技术进行处理,增加了设备的耐磨性和防腐性,延长设备使用寿命。

使用自主开发的聚氨酯精细筛网(最小0.075mm),筛网不易堵孔,五路同时给料,处理量大,筛分效率高。

 The main parts of screen are riveted withrivets, ensuring the reliability and stability oflong-termoperation, reducing maintenancetimes and the labor amounts.

 The surfaces are sprayed with polyurea,increasing the wear resistance and corrosion protection, extending the service life of the equipment.

● Matched with the fine screen mesh( Fangyuans innovation, minimum aperture is 0.075mm),the screen has 5 feeding ways, enlargingthe handling capacity and the screening efficiency.

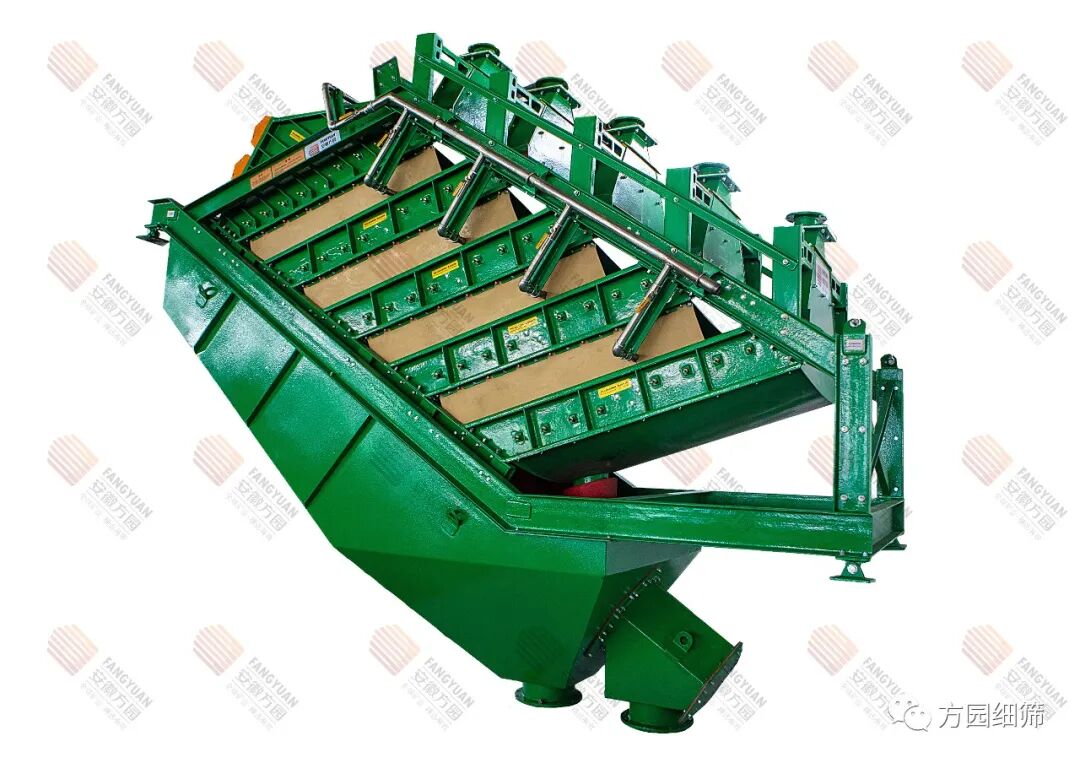

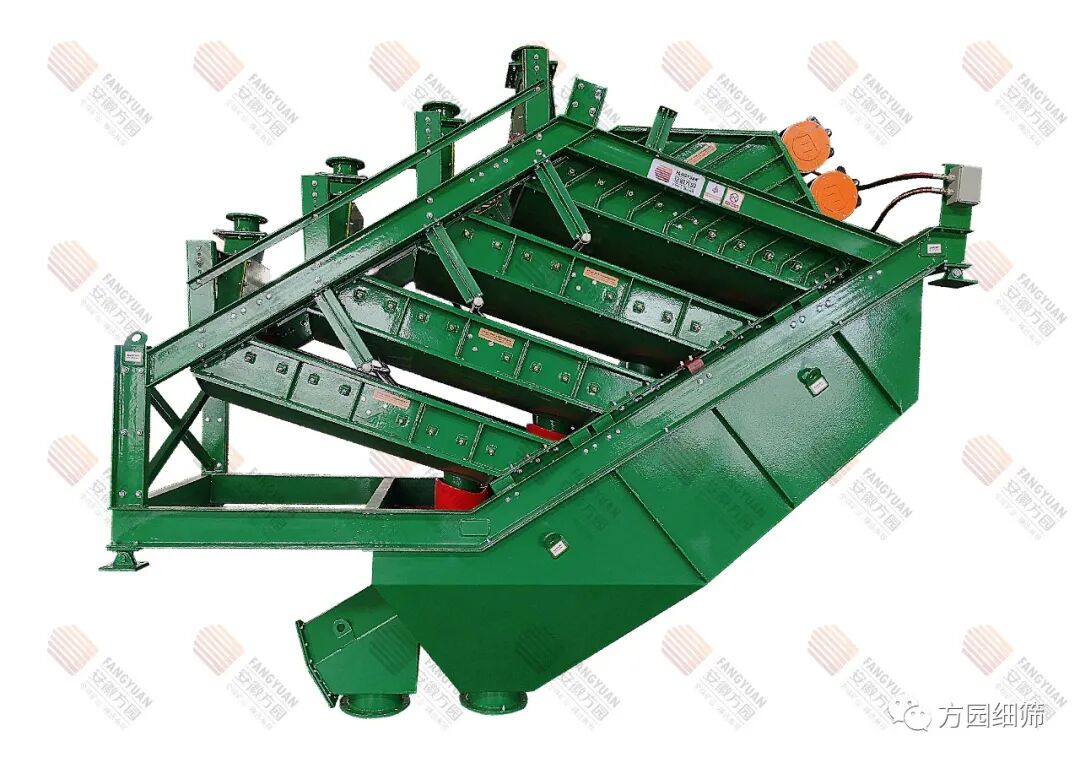

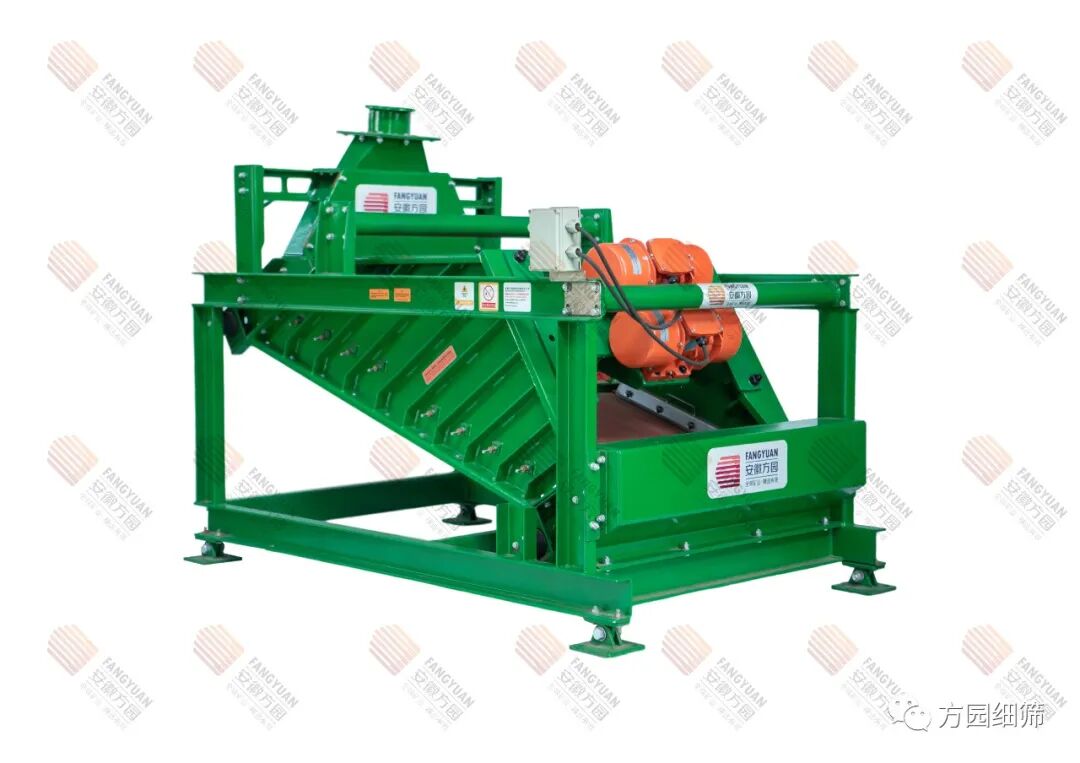

                             单叠高频细筛

                    One-deck High Frequency Screen

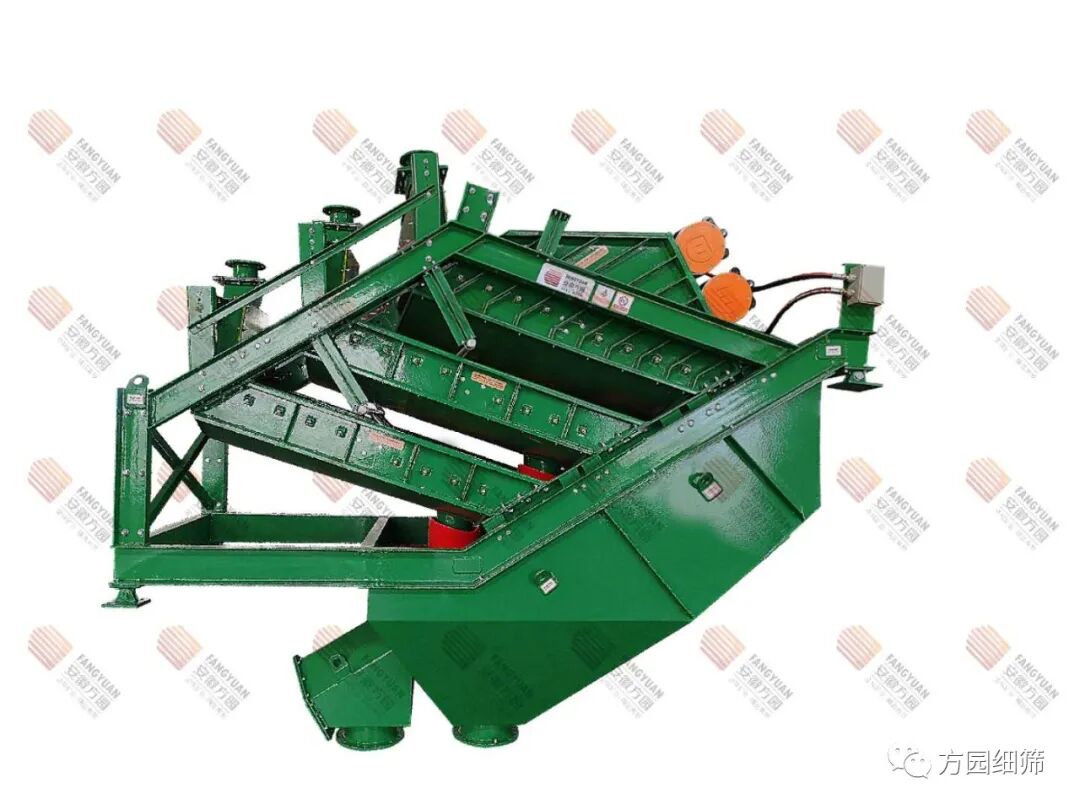

             三叠高频细筛

               Three-deck High Frequency Screen



                                   四叠高频细筛

              Four-deck High Frequency Screen



                                      五叠高频细筛

                Five-deck High Frequency Screen

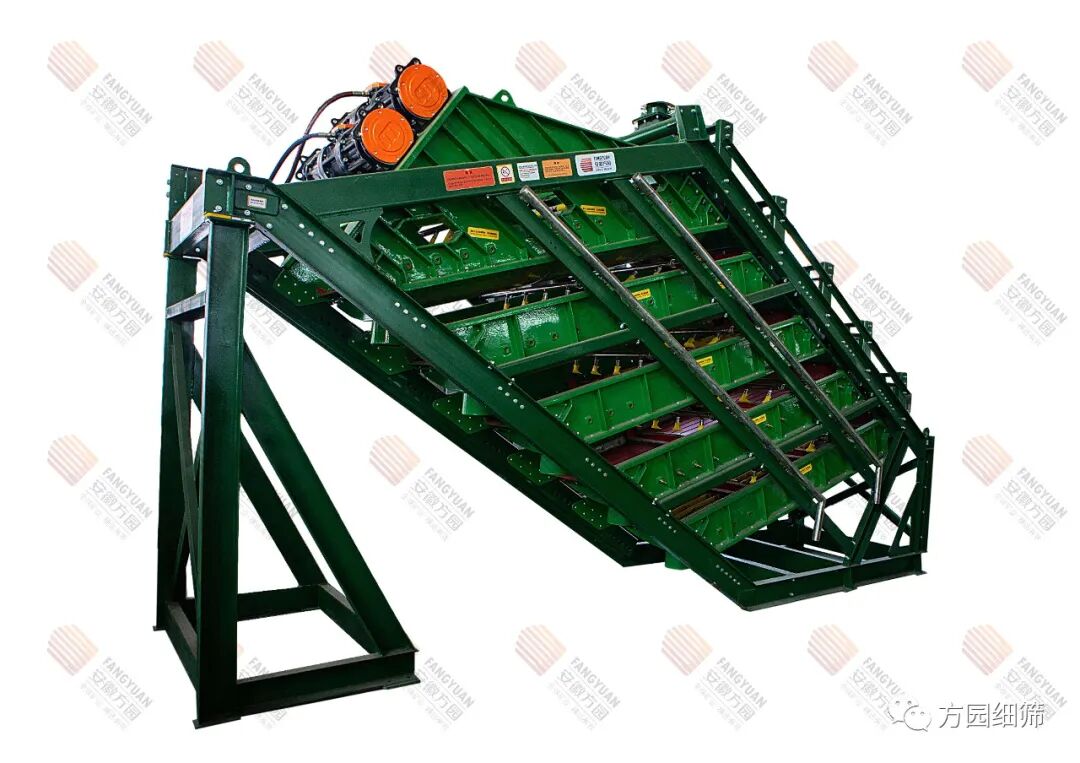

FY-HVS-1500 五叠高频筛技术参数

外形尺寸:5160(L) X 1510(W) X 4448(H) MM

整机重量:5.18吨

筛分面积:7.3㎡

筛分倾角:17.5°

筛分效率:85~90%

振幅:0.8~2mm

最大处理量:40T/h -120 T/h


FY-HVS-1500 5-DECK High Frequency Screen

Technical Data

Figure Size: 5160(L) X 1510(W) X 4448(H) MM

Weight: 5.18 tons

Sieving area: 7.3㎡

Sieving obliquity: 17.5°

Sieving efficiency: 85~90%

Amplitude:0.8~2mm

Handling Capacity:40T/h -120 T/h



                                      FY-HVS-1530 五层三段高频筛

                                FY-HVS-1530 Five-deck Three-section

                                           High Frequency Sceen

技术特点

 分级效率高,平均80%以上。

 单位占地面积小,处理能力大。

 筛网不堵孔,使用期长,正常使用寿命可达六个月以上。

 筛框表面喷涂聚脲,筛机使用寿命长, 筛机寿命10年以上,筛下、筛上溜槽等过流部件均内衬耐磨橡胶或耐磨聚脲喷涂材料。

 方园浆料分配器保证多叠筛机每路提供的浆料数量、浓度、质量和粒度分布相同,更加均匀;采用分体式内外圆筒形设计,料浆从内筒中心给入,并经过外圆筒之间均布的多路料浆分布室均匀流出。

 橡胶悬浮支撑弹簧,减震效果好,筛框几乎无振动,保证设备长期运行的稳定性和可靠性。


Technica Characteristics

 High separation efficiency, more than 80% on average.

● Small unit area and large processing capacity.

● The fine screen mesh is non-blinding and long using life, usually, the life achieves over 6 months.

 The screen frames are sprayed with polyurea,the screen using life can be over 10 years, the overflow parts such as oversize and undersize hoppers are lined with high wear resistant rubber or polyurea materials.

 Fangyuan Slurry-divider uses the split type cylinder-shaped design, the slurry enters into the inner from the center and flows through the uniformly distributed chambers inside and outside the cylinders.

 Rubber suspension support springs are installed with good shock absorption effect, screen frames are almost no vibration,ensuring the stability and reliability of long-term operation of the equipment.

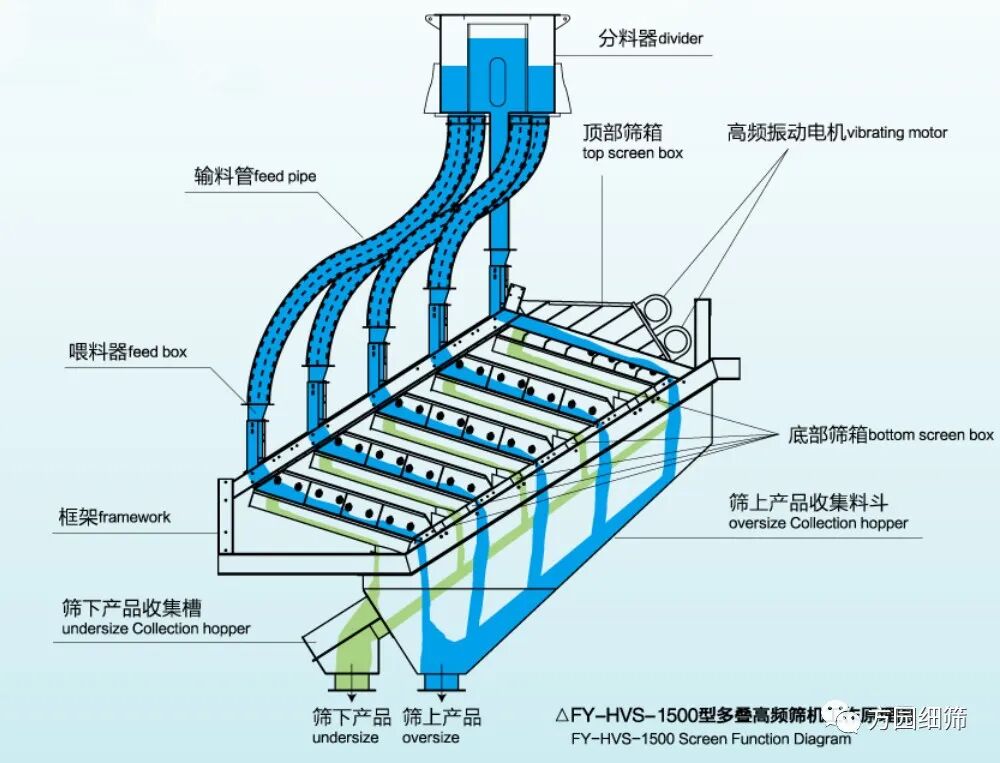

工作示意图 Function Diagram





二次造浆系统

    Secondary Pilping System

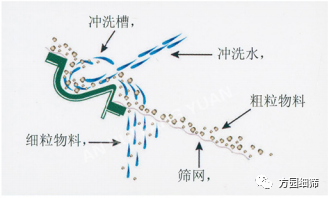

每层筛箱由两段筛板组成,二次造浆系统筛面采用两段式,增加二次造浆槽,经过第一张筛网筛分,筛面物料浓度增大,不利于筛分,通过二次造浆槽和喷水系统的配合,使物料达到利于筛分的浓度,从而提高筛分效率,同时有利于脱除夹杂在筛上物中的细粒。

The screen surface of the secondary pulping system adopts two-stage type, which increases the secondary pulping trough. After the first screening, the material concentration on the screen surface increases, which is not conducive to screening. Through the cooperation of the secondary pulping trough and the sprinkler system, the material reaches the suitable concentration for screening, in this way, the screening efficiency is greatly improved.

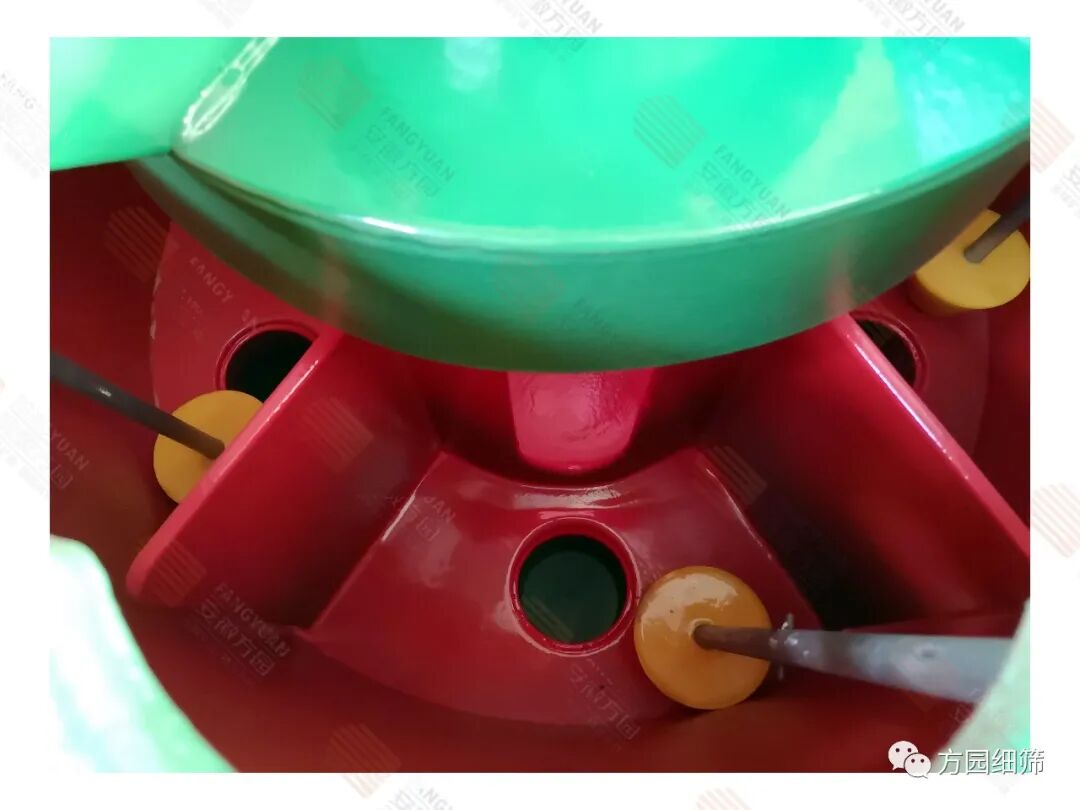

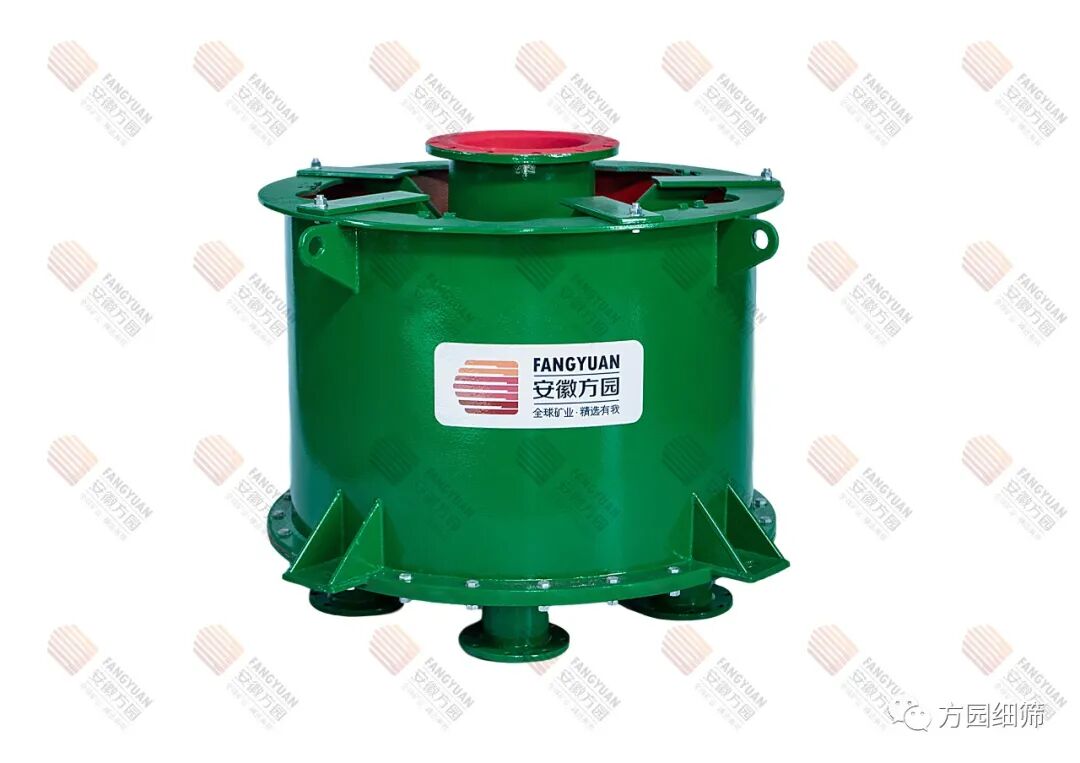

FY-DIVIDER-5 分矿器

FY-DIVIDER-5 Divider


 方园料浆分配器采用分体式内外圆筒设计,料浆从内筒中心给入,并经过内外圆筒之间均布的多路料浆分布室均匀留出。

 方园料浆分配器采用聚脲防腐喷涂,内部采用耐磨衬胶,延长使用寿命。

 方园料浆分配器保证多叠筛机每路提供的料浆数量、浓度、质量和粒度分级分布相同。方园可提供多台或多路筛机料浆分配系统。


● Fangyuan Slurry-divider uses the split type cylinder-shaped design, the slurry enters into the inner from the center and flows through the uniformly distributed chambers inside and outside the cylinders.

● Fangyuan Slurry-dividers are sprayed with polyurea outside and lined with high wear resistant rubber inside to extend the using life.

● Fangyuan Slurry-divider ensures that each channel stacked screen machines to provide the the same distribution of the slurry amount, concentration, quality and grain size. Fangyuan can supply the multiple slurry distribution system as requested.

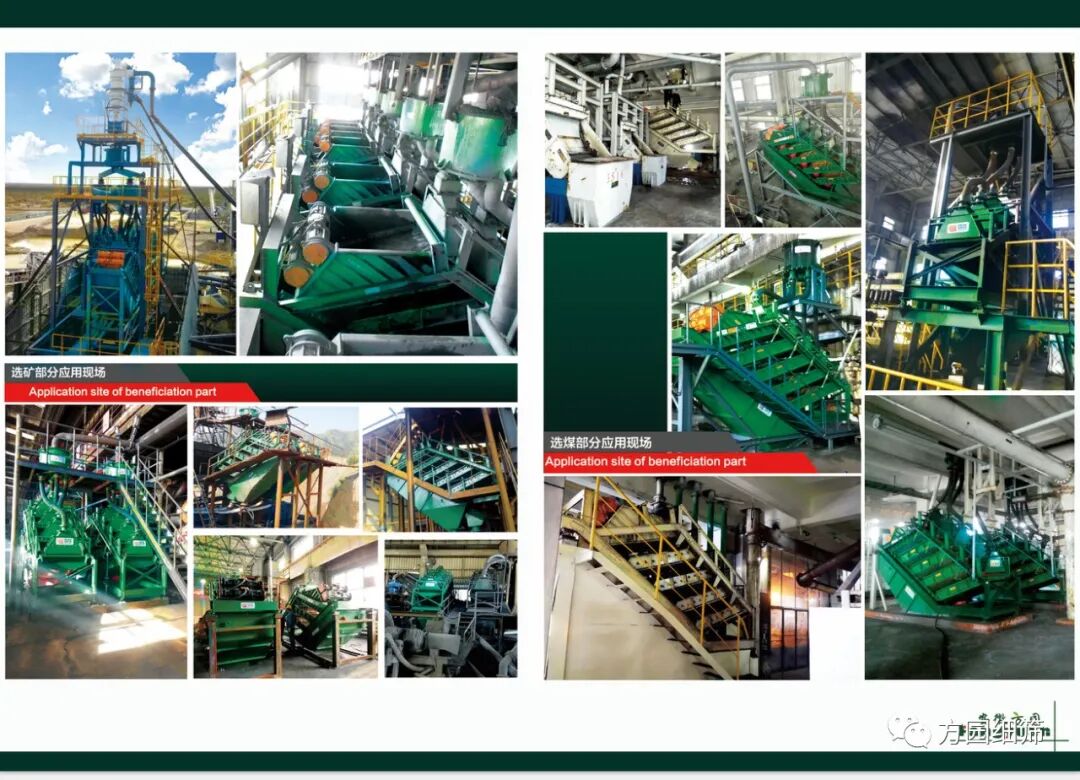

现场应用 Application

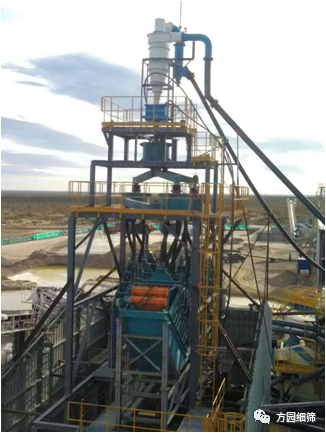

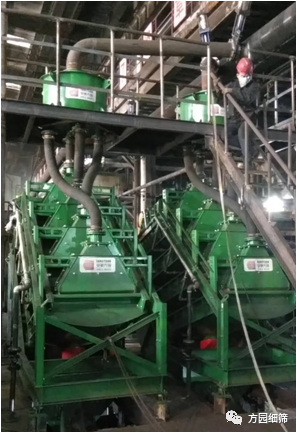

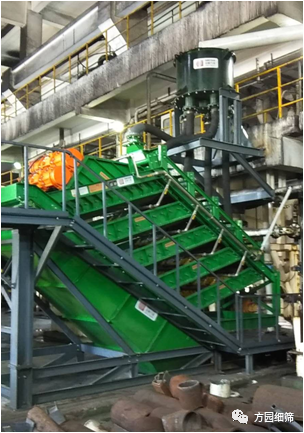

                       FY-HVS-1500叠层细筛使用现场
