FY-GPS系列直线振动筛融合了先进的筛分技术与制造工艺，按照免维护、 高可靠性、高振动强度设计，适用于各种严峻恶劣的工况条件，在冶金矿山、煤炭、有色、建材、化工等金属及非金属领域广泛使用。

   FY-GPS series Linear Vibrating Screen integrates advanced screening technology and manufacturing process. It is designed according to maintenance free, high reliability and high vibration intensity, and is suitable for various severe working conditions. It is widely used in metal and non-metal fields such as metallurgical mines, coal, non-ferrous, building materials, chemical industry, etc.

● 筛机过流部位喷涂耐磨聚氨酯涂层，其余整体喷涂环氧漆。

● 筛板使用聚氨酯材料，开孔率高，使用寿命长。

● 振动电机采用国内知名品牌，功耗低，振幅稳定。

● Abrasion-resistant polyurethane coating was sprayed on the flow passage part of the screen, while epoxy paint is sprayed on the rest part wholly.

● The screen panels are made of polyurethane raw material, which has high opening rate and long service life.

● A Chinese well-known brands vibration motors are installed on the screen, with low power consumption and stable amplitude.

筛板安装方式及优点

     方园直线振动筛所配备的筛板为防堵耐磨聚氨酯筛板，安装方式为轨座式安装。

● 筛网采用驼峰非平面筛网，开孔率高，同等网孔，该筛网设计成非平面的“山脊”形状，增加筛网的筛分面积，使筛分效率加倍。

● 与原始筛网相比，该筛网使滤水性能加倍，高效脱水、脱介。

● 标准模块生产，使用安装销连接安装，可根据客户要求设计孔径。

● 方园驼峰立体筛网表面的筛孔增加，提高了筛机的处理量。

Installation Mode& Advantages of Screen Mesh
 The screen meshes of Fangyuan Linear Vibrating Screen is anti-blocking and wear-resistant, the installation method is rail seat type.

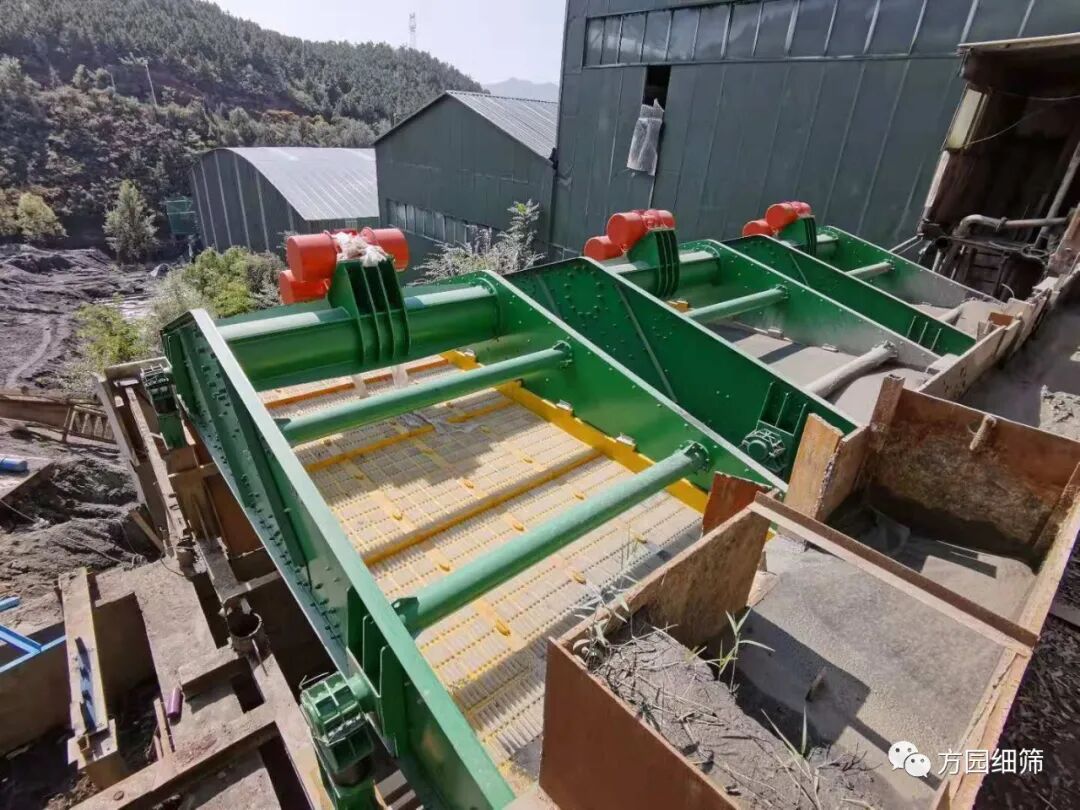

● The non-plane hump-shape screen meshes are installed the screen machine, which has high opening rate.  For the same area, the screen is designed into a non-plane "hump" shape, which increases the screening area and doubles the screening efficiency.
● Compared with the original screen, the screen doubles the water filtration performance, and effectively dehydrates and degrades the substance.
● The screen panels are produced with standard modules, connected and installed with installation pins, and the apertures can be designed according to the customer's requirements.
● The screen holes on the non-plane hump-shape screen surface are increased, which improves the processing capacity of the screen machine.
